Lobe Pumps
CLASSIC+ SERIES™ / MULTIPUMP® SERIES
The Classic+ Series™ / MultiPump® Series is the perfect solution for pharmaceutical, personal Care, foods, and more due to its cleanability, superior performance, and ease of maintenance. It can handle flows up to 832 GPM (189 m³/h).
Features & Benefits
Cleanability
- Modular pump design promotes easy disassembly for COP (Clean Out of Place) & CIP (Clean In Place)
- Casing profile cusps maximize efficiency & draining capability
Performance
- Timed, non-contacting rotors minimize shear while providing extended run-dry capability
- Helical timing gears provide high torque & quieter operation for extended pump life
- Tapered roller bearings provide higher operating speeds & better discharge pressures
Ease of Maintenance
- Removable foot for easier placement
- Classic RLP design

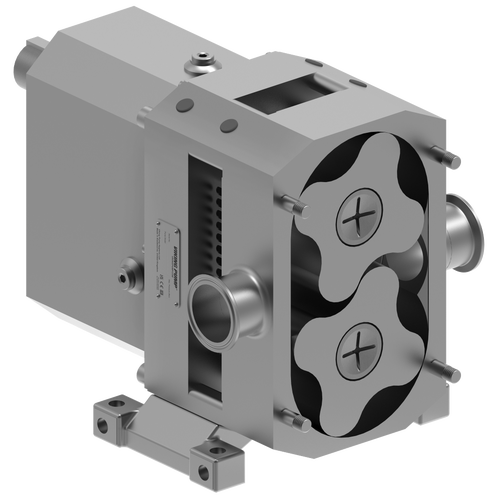

STERILOBE® SERIES
The SteriLobe® Series pump is the perfect rotary lobe solution for pharmaceutical, foods, beverage, and more due to its ability to gently handle product hygienically. It can handle flows up to 753 GPM (171 m³/h).
Features & Benefits
Cleanability
- Cover joint profile improves hygienic characteristics & self-draining capabilities
- Clean & corrosion resistant stainless gear cover & bearing housing
Ease of Maintenance
- Front loading seals can be changed while the pump is still in-line
- Seal positioned for optimal lubrication, maximizing seal life
- Hassle free gearbox maintenance with sealed for life bearings
Performance
- Standard bi-wing rotors offer application flexibility & good solids handling capabilities
- Multi-lobe rotors reduce shear & pulsation effect; ideal for sensitive media
- Innovative cusps with reliefs allow for easier cleaning and self draining with improved efficiency

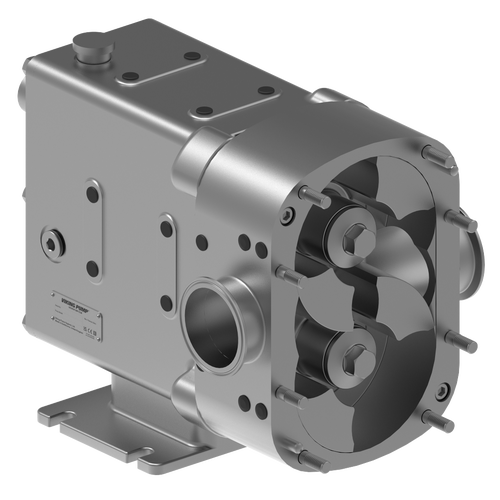

REVOLUTION® SERIES
The Revolution® Series is a positive displacement pump with both rotary lobe and circumferential piston rotor options. This is the ideal solution for pharmaceutical, personal care, foods, and more due to its cleanability, superior performance, and ease of maintenance. It can handle flows up to 399 GPM (91 m³/h).
Features & Benefits
Cleanability
- Efficient CIP (Clean In Place) ability is standard for all Revolution pumps
- Self draining pump head from innovative cusps & cusp reliefs
- Innovative seal design with no dead zones & a dynamic leak path
- No dead zones on front cover
Ease of Maintenance
- Fast, front loading seal changes while pump is still in line
- Front access shimming for setting rotor clearance significantly reduces maintenance time
- Convenient preventive maintenance parts kits available
Performance
- Improved volumetric efficiency in low & high viscosity applications
- Up to 15% better flow performance than competitors’ CIP configuration with CPP version
- Gentle handling of solids & shear sensitive products
- Long-life durability from heavy duty shafts, bearings & helical gears
- Less overhung load
