Metering Pumps

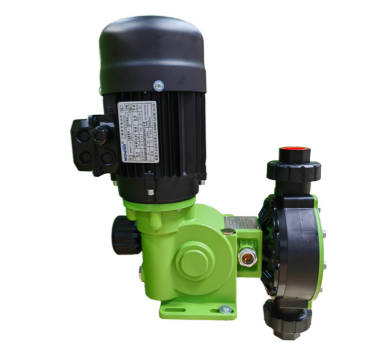

GreenLine Pump
The GreenLine (GLM) mechanically actuated diaphragm metering pump, is designed to be reliable, robust, efficient, and compact with the industrial features needed for just about any application or environment.
If you are looking for a high value chemical transfer or dosing metering pump with low cost of ownership, GLM is an outstanding choice. This latest pump series from Pulsafeeder can handle a wide range of flows and process chemicals.
Features & Benefits
- Rugged double-sided PTFE faced, multi-layer diaphragm: GreenLine’s flat mechanically actuated diaphragm delivers reliable pumping action and long life, is designed for maximum chemical resistance, and the multiple diaphragm sealing beads prevent leakage.
- Secure diaphragm sealing technology provides additional protection for leak free service and chemical containment. A secondary O-ring seal offers worry free sealing and eliminates chemical spray while the retention plate ensures pressure containment (Hydrostatic and creep elimination) and allows for proper head bolt torque without loosening over time.
- Self contained double barrier protection check valve assembly provides additional protection against leaks (not in 316L configuration).
- Spherically uniform velocity check valves: Limit turbulence, provide superior solids handling and are auto-flushing. The Flow is routed evenly without risk of cavitation.
- The GreenLine ‘s O-ring valve seats (soft seats) offer improved priming, creates less noise, and provides better solids / slurry handling (not available in 316L configurations).
- Compact and lightweight gearbox saves space, is easy to handle and incorporates a fully sealed, non-vented design to prevent ingress of contaminants. The oversized, shielded bearings deliver long life and reliability, while the sealed upper worm bearing extends gear and motor life, reduces noise, and maximizes pump efficiencies by ensuring full torque output.
- Stroke adjustment has an auto-locking mechanism which absolutely prevents gradual turning. Just adjust and walk away with peace of mind. No need for a secondary locking mechanism.
- The motor flange drain path redirects liquids away from the drive shaft seal and eliminates pooling on the motor shaft connection.
- Non-metallic, never seize motor coupling prevents sticking or “welding” of the worm shaft to motor shaft allowing for ease of motor installation/removal.
- Flat, solid mounting feet support the pump securely so it will not tip over prior to installation.

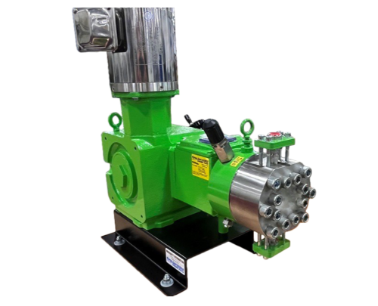

Hydraulic Diaphragm Pumps
Pulsa Series is available with a variety of diaphragm styles to deliver everything from thin fluids to lime slurries, materials of construction for contact with the most hazardous chemicals and features and options to provide safe, remote and accurate dosing, count on Pulsa Series for the most demanding applications.
Features & Benefits
- Full motion stroke length yields 0-100% flow adjustment
- Linear flow predictability over a 10:1 turndown
- 1% dosing accuracy
- Hydraulically balanced diaphragm for long life and reduced service cost
- Hydraulic management system assures consistent performance
- Internal hydraulic bypass valve for pump protection against system upset
- Epoxy coating resists corrosion from atmospheric contaminants
- 4-Bolt tie-bar valve assembly for service without disturbing system piping
